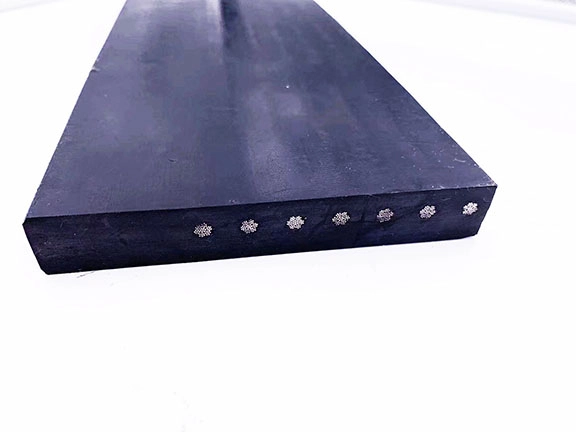

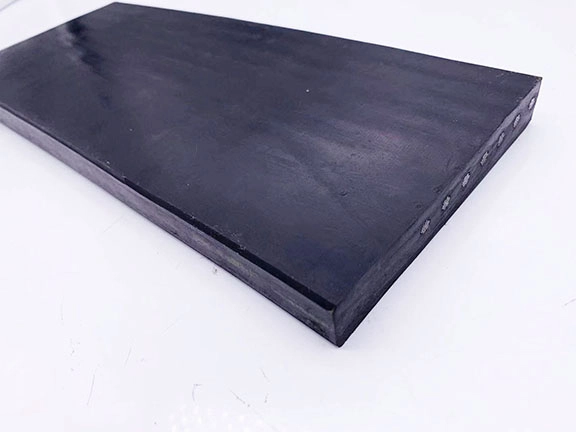

The general steel cord conveyor belt is formulated by the steel cord as the skeleton of a rubber conveyor belt. It consists of a top rubber cover, a bottom rubber cover, and a carcass. The carcass is made up of steel cord and core rubber, offering a broad range of steel cord conveyor belts with different strengths, including ST-500, ST-630, ST-800, ST-1000, ST-1250, ST-2500 and ST-4500.
As one of the most reliable general steel cord conveyor belt manufacturers, Rentone Belt can supply global customers with superb quality steel cord conveyor belts with high tensile strength, excellent impact and wear resistance, low elongation, and outstanding troughability. Our general steel cord conveyor belts are frequently utilized in mining, chemical, and metallurgical industries to transport heavy-load materials requiring long distances.
Exceptional resistance to impact, wear and tear
Good heat resistance and fatigue resistance
High tensile strength and high safety factor
Exceptional troughability and bending resistance
Long service life
Small elongation
| NormalBelt Strength (N/mm) | Max.Steel Cord Dia. (mm) | Cord Construction | Min. Cord Breaking Strength (kN/cord) | Cord Pitch (mm) | Min. Pulley Diameter (mm) |
| ST-500 | 3 | 7*7 | 7.6 | 14 | 500 |
| ST-630 | 3 | 7*7 | 7 | 10 | 500 |
| ST-800 | 3.5 | 7*7 | 8.9 | 10 | 500 |
| ST-1000 | 4 | 7*7 | 12.9 | 12 | 630 |
| ST-1250 | 4.5 | 7*7 | 16.1 | 12 | 800 |
| ST-1600 | 5 | 7*7 | 20.6 | 12 | 1000 |
| ST-2000 | 6 | 7*7/7*19 | 25.6 | 12 | 1000 |
| ST-2500 | 7.2 | 7*7/7*19 | 40 | 15 | 1250 |
| ST-3150 | 8.1 | 7*7/7*19 | 50.5 | 15 | 1400 |
| ST-3500 | 8.6 | 7*7/7*19 | 56 | 15 | 1600 |
| ST-4000 | 8.9 | 7*7/7*19 | 63.5 | 15 | 1600 |
| ST-4500 | 9.7 | 7*7/7*19 | 76.3 | 16 | 1600 |
| ST-5000 | 10.9 | 7*7/7*19 | 91 | 17 | 1800 |
