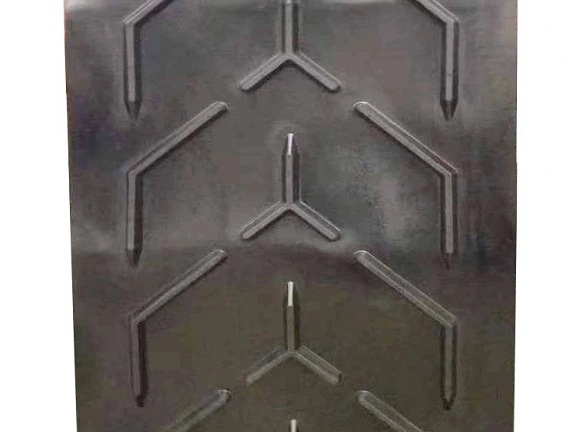

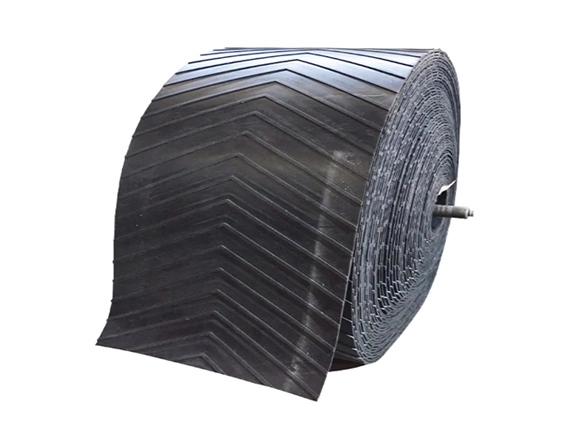

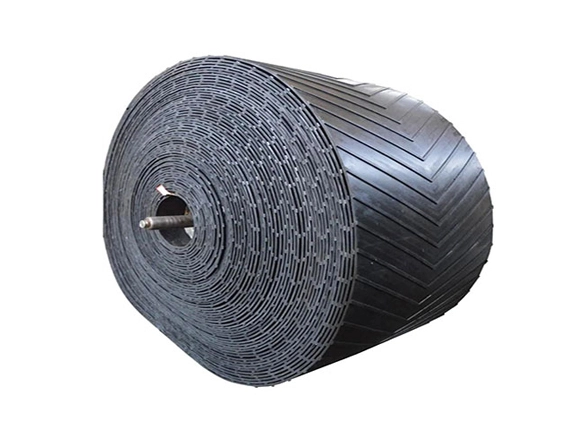

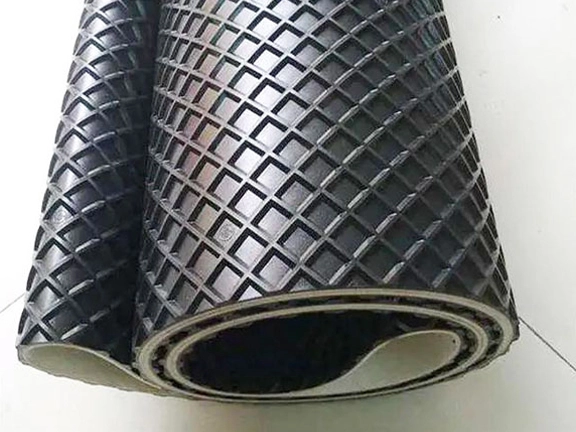

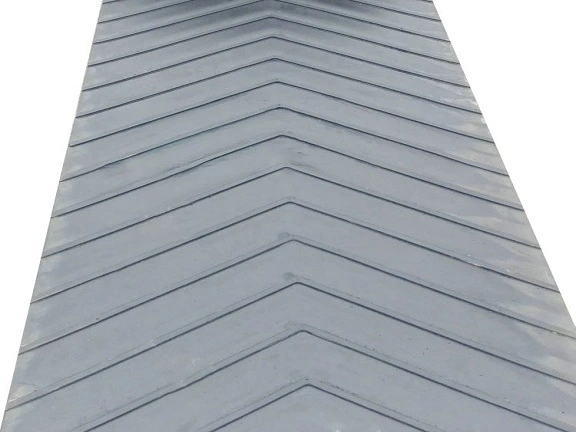

The pattern conveyor belt, also known as the chevron conveyor belt, is designed with a distinctive V-shaped pattern on the belt surface. The chevron belt is a type of inclination conveyor belt consisted of the patterned working surface, the flat non-working surface, and the belt core. It has excellent performance in transporting small, granular, and powdery materials with an incline of less than 45 degrees to keep materials from collapsing.
As a chevron conveyor belt factory, we can produce a broad variety of chevron belts. All of our patterned conveyor belts can be cut and spliced to your exact specifications. In addition, we provide a variety of top and bottom coverings to protect the conveyor belts from fire, oil, abrasion, and heat.

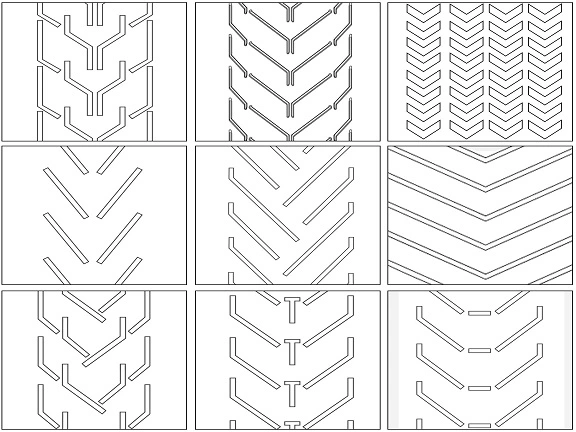

Our popular V-patterns are C-Series, V-Series, Y-Series, and other specialty types.
We are certified with ISO and CE, ensuring high standards of quality and safety.
Stable transportation: Precisely designed edge profiles, angles, and pitch to prevent material slippage.
High strength and durability: Durable fabric carcass and integral vulcanization process ensure high durability of the conveyor belt.
Excellent tensile, impact and tear resistance: the close combination of the base band and the rubber layer ensures reliable performance under heavy loads.
Versatility: Suitable for various materials and applications at angles up to 45 degrees
| Chevron Type | Pattern | C.H(mm) | C.W(mm) | C.P(mm) | Belt Width | |
| mm | inch | |||||
| C6 | C6-P230 | 6 | 230 | 75 | 300-400 | 12"-16" |
| C6 | 6 | 300-1200 | 100 | 300-1200 | 12" -48" (1215) | |
| V6 | V6 | 6 | 600-1800 | 75 | 600-1800 | 24" -72" |
| C12 | C12-V800 | 12 | 800 | 150 | 800-1200 | 32" -48" (1206) |
| C15 | C15 -V330 | 15 | 330 | 250 | 400-600 | 16" -24" |
| C15-P385 | 15 | 385 | 250 | 500-800 | 20" -32" (800) | |
| C15-V450 | 15 | 450 | 300 | 600-600 | 24" -32" (800) | |
| C15-P500 | 15 | 500 | 340 | 550-750 | 22" -30" (750) | |
| C15-P600 | 15 | 600 | 250 | 750-1000 | 30" -40" | |
| C15-P750 | 15 | 750 | 250 | 900-1200 | 36" -48" (1215) | |
| C25 | C25-P450 | 25 | 450 | 335 | 600-750 | 24" - 30" (750) |
| C25-P550 | 25 | 550 | 250 | 600-800 | 24" -32" | |
| C25-P750 | 25 | 750 | 330 | 900-1200 | 36" -48" (1215) | |
| Y32 | Y32-P450 | 32 | 450 | 255 | 500-800 | 20" -32" (800) |
| Y32-P600 | 32 | 600 | 300 | 800-1000 | 32" -36" | |
| Y32-P800 | 32 | 800 | 333 | 1050-1200 | 36" -48" | |
Agriculture: Transporting grains, seeds, and fertilizers on sloped surfaces in farms and processing plants.
Mining: Moving fine ores, minerals, and coal in mining operations, especially in underground or steeply inclined areas.
Construction: Handling sand, gravel, and other granular materials in construction sites
Recycling: Moving small and granular waste materials, like shredded plastics or paper, in recycling plants on inclined conveyors.
Cement Industry: Transporting fine materials like cement powder, limestone, and clinker in cement plants, particularly on inclined paths.
Logistics and Warehousing: patterned belts can improve the efficiency of sorting and transporting items.
When selecting the right chevron conveyor belt, factors such as material type, conveyor incline angle, transport distance, pattern profile, and capacity requirements should be considered. Ensure that the design of the pattern, including its height, angle, and edge type, meets your specific operational needs.
Feel free to contact us, and our expert team will assist you in selecting the ideal chevron conveyor belt for your needs.
| Material Type | Example Materials | Conveyor Angle (°) | Recommended Cleat Height (mm) | Cleat Type Examples |
| Fine and light materials | sand, grains, sugar, powders | 0-15° | 6 mm | C6, V6 |
| 15-25° | 12 mm | C12 | ||
| 25-35° | 15 mm | C15 (e.g., C15-V330, C15-P500) | ||
| Granular and free-flowing | coal, fertilizer, salt | 0-15° | 12 mm | C12 |
| 15-25° | 15 mm | C15 | ||
| 25-35° | 25 mm | C25 | ||
| Coarse and heavy materials | gravel, crushed stone, ores | 0-15° | 15 mm | C15 |
| 15-25° | 25 mm | C25 | ||
| 25-35° | 32 mm | Y32 | ||
| Sticky or wet materials | wet clay, wet sand, compost | 15-25° | 25 mm | C25-P550 |
| 25-35° | 32 mm | Y32-P600, Y32-P800 |
1. What is a Chevron conveyor belt?
A Chevron conveyor belt is a patterned conveyor belt. The V-shaped pattern (or other forms) helps prevent material slippage, providing better traction, making it an ideal choice for inclined and vertical applications. The unique design prevents material from rolling back or spilling from the sides, ensuring efficient and reliable transportation.
2. How to maintain a Chevron conveyor belt?
Regular maintenance includes:
Monitoring belt tension to ensure proper alignment.
Inspecting the surface for wear or damage to the chevron patterns.
Cleaning the belt to prevent material buildup, which can affect performance.
Checking for proper tracking to prevent misalignment during operation.
1. Proven Quality and Certification.
Rentone holds ISO 9001 certification for quality management, ISO 14001 certification for environmental management, and CE certification for safety and compliance. These certifications reflect our commitment to achieving international standards and offering dependable products customers can count on.
2. Decades of Industrial Experience
Rentone has over 20 years of experience in the conveyor belt sector and adds a wealth of knowledge and skills to each project.
3. Advanced Technology and Customization.
With cutting-edge technology and excellent production skills, our expert staff is well-equipped to deliver inventive customization, guaranteeing that each belt is precisely built to match your specific operational requirements.
4. Rigorous Testing for Performance
From tensile strength to impact and tear resistance, our products are rigorously tested to guarantee they match your expectations and industry requirements.
