The PVC conveyor belt is preferred for many applications and industries such as food processing, chemical, manufacturing, etc. for their excellent chemical resistance, high tensile strength and grease resistance.

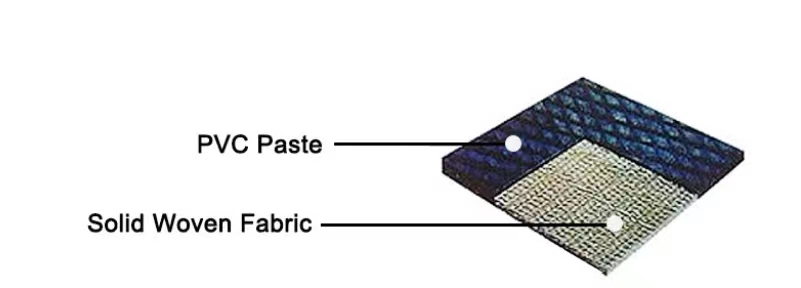

We are one of the reputed PVC conveyor belt manufacturers and we offer a wide range of PVC conveyor belts for various applications. The core of each PVC belt consists of a high-strength solid woven carcass (fabric layer), which is subsequently extruded or coated with a PVC layer through a coating process and vulcanized or hot pressed to firmly bond the PVC to the fabric layer, resulting in a cover layer that is abrasion-resistant, anti-static, and other properties.
In addition, The inclined angle of the PVC conveyor belt is less than 16 degrees, which is suitable for conveying materials under dry conditions. For different applications, we offer customized PVC conveyor belt solutions to ensure that the specific requirements of each industry are met.
Cover Layer:
Material: PVC (Polyvinyl Chloride).
Function: Provides protection against abrasion, impacts, and environmental conditions. This layer also offers good resistance to oils, chemicals, and general wear and tear.
Fabric Reinforcement:
Material: Typically made from synthetic fibers such as polyester, nylon, or a blend of both.
Function: Acts as the main reinforcement layer, providing tensile strength, durability, and flexibility. The fabric reinforcement ensures the belt can handle the stresses of material handling.
Fabric Adhesive Layer:
Material: Specialized adhesive designed for bonding fabric and PVC layers.
Function: Ensures strong bonding between the PVC covers and the fabric reinforcement, enhancing the belt's integrity and longevity.
| Weight (KG/㎡） | Color | Tensile Strength | Pulling Force Required to Extend 1% | Smallest Roller Diameter | Hardness | Structure | Applicable Equipment |
| (mm) | |||||||
| 1.1 | Green/White | ≥50 | ≥4 | 20 | 75/65 | 1cloth&1glue | Food, Textile, Packaging |
| 2 | Green | ≥50 | ≥5 | 30 | 75 | 2cloth&2glue | Machinery, Textile, Packaging |
| 2.5 | Green/White/Black | ≥100 | ≥8 | 40 | 75 | 2cloth&2glue | Food, Textile, Packaging |
| 3.8 | Green/White/Black | ≥100 | ≥8 | 60 | 75/65 | 2cloth&2glue | Food, Textile, Packaging |
| 4.5 | Green/White | ≥100 | ≥8 | 60 | 75 | 2cloth&2glue | Food, Textile, Packaging |
| 4.8 | Green/White | ≥150 | ≥12 | 80 | 75/65 | 3cloth&3glue | Food, Textile, Packaging |
| 6.1 | Green/White/Black | ≥200 | ≥16 | 120 | 75 | 3cloth&3glue | Food, Textile, Packaging |
| 7 | Green | ≥200 | ≥16 | 150 | 80 | 4cloth&4glue | Machinery, Textile, Packaging |
Anti-static and flame-retardant
Anti-impact and anti-tear properties
High tensile strength
Small elongation
Exceptional durability and prolonged service life
Easy to clean and handle
Food processing
Chemical industry
Logistics sorting
Electronics manufacturing
Packaging industry
Professional Manufacturing: Years of conveyor belt manufacturing experience, products are exported to all over the world.
Customized service: Provide a variety of specifications, colors, surface textures and special features.
Strict quality control: ISO, CE and other international certifications to ensure high quality.
Cost-effective: Advanced production technology, providing a competitive price.
