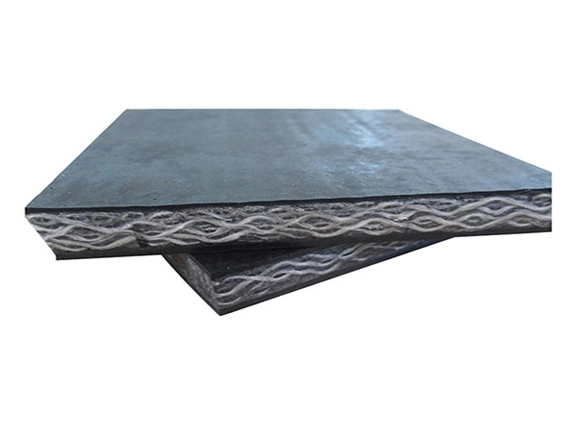

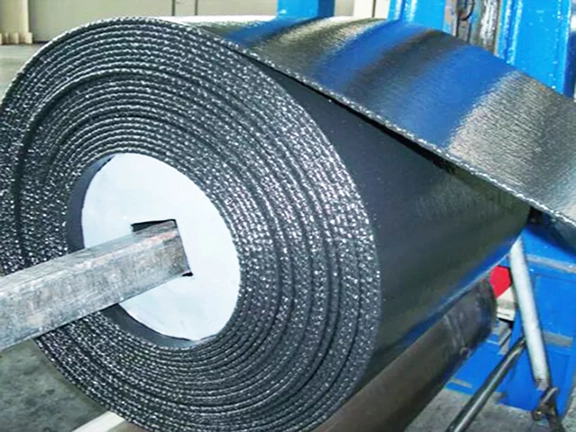

The PVG conveyor belt is highly anti-static and flame retardant to work in low temperature environments, especially in underground coal mines. The PVG conveyor belt is manufactured by plasticizing or vulcanizing the solid woven core. It has a top and bottom cover made from PVC and NBR compound, as well as a solid woven carcass that offers enhanced reinforcement. The inclined angle of PVG conveyor belt is less than 20 degrees, which is suitable for conveying wet and damp materials.
Being a reliable conveyor belt manufacturer, Rentone Belt excels in delivering top-tier PVG conveyor belts tailored to diverse industries' needs. Reach out to us for a personalized quotation.

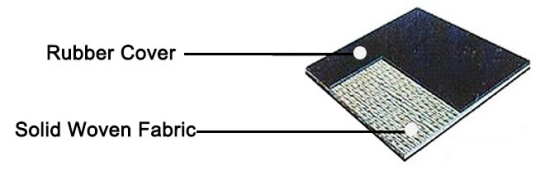

Cover Layer:
Material: PVC and NBR (Nitrile Butadiene Rubber) compound.
Function: Provides protection against abrasion, impacts, and environmental conditions. This layer also offers good resistance to oils and chemicals.
Solid Woven Carcass:
Material: Solid woven fabric, typically made from a combination of synthetic fibers such as polyester and nylon.
Function: Acts as the main reinforcement layer, providing high tensile strength, durability, and flexibility. The solid woven construction ensures superior resistance to tearing and puncturing.
Adhesive Layers:
Between the carcass and the NBR covers, adhesive layers are applied to ensure strong bonding.
Function: This enhances the belt's overall integrity and prevents delamination under stress.
| Applicable Standard MT914-2008 BS3289 HG2805 | Safety Factor 10 (Tensile Strength*1/10) | |||||
| Type | Grade | Tersile Strength≥, N/mm | Breaking Elongation≥,% | Recommended Minimum Transmission Drum Diameter | ||
| Longitudinal | Transverse | Longitudinal | Transverse | |||
| 680S | 4 | 680 | 265 | 15 | 18 | 400 |
| 800S | 5 | 800 | 280 | 500 | ||
| 1000S | 6 | 1000 | 300 | 630 | ||
| 1250S | 7 | 1250 | 350 | 750 | ||
| 1400S | 8 | 1400 | 350 | 750 | ||
| 1600S | 9 | 1600 | 400 | 750 | ||
Exceptional impact and tear resistance
Good chemical, moisture, and corrosion resistance
Excellent flexibility and durability
High tensile strength and good troughability
Low elongation
